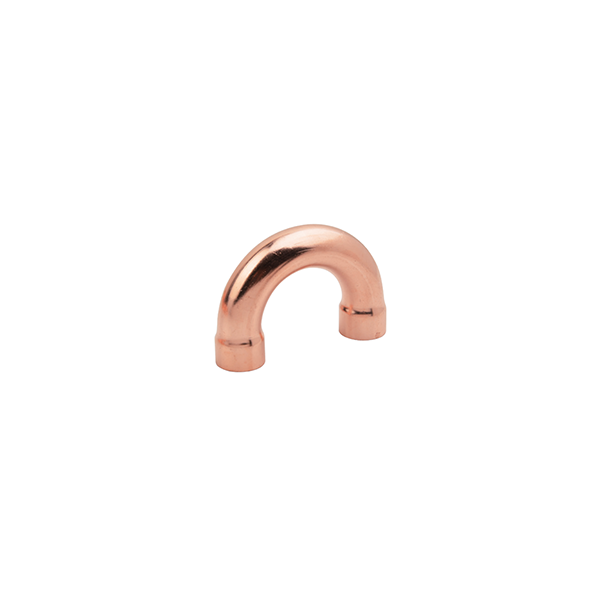

| Product Name | Copper U Bend |
| Type | C x C |
| Material | C12200/Cu-DHP |
| Standard | ASME B16.22, EN1254 |
| Size Range | 1/4" ~ 2" (10mm ~ 54mm) |
| Transport Package | Sealing Bag + Carton Case/Wooden Pallet |
| Delivery Time | 7 ~ 10 days |
| Application | For plumbing, water supply, refrigeration, medical gas, etc. |
| Origin | China |
| ASME B16.22 | ||||
| Item No. | Nominal Size (inch) | Actual Size (inch) | Connection Type | Bag Quantity |
| A117002 | 1/4" | 3/8" | C x C | 50 |
| A117003 | 3/8" | 1/2" | C x C | 25 |
| A117004 | 1/2" | 5/8" | C x C | 25 |
| A117005 | 5/8" | 3/4" | C x C | 10 |
| A117006 | 3/4" | 7/8" | C x C | 10 |
| A117007 | 1" | 1-1/8" | C x C | 5 |
| A117008 | 1-1/4" | 1-3/8" | C x C | 5 |
| A117009 | 1-1/2" | 1-5/8" | C x C | 2 |
| A117010 | 2" | 2-1/8" | C x C | 2 |
| EN 1254 | |||
| Item No. | Size (mm) | Connection Type | Bag Quantity |
| E117003 | 10 | C x C | 25 |
| E117004 | 12 | C x C | 25 |
| E117005 | 14 | C x C | 25 |
| E117006 | 15 | C x C | 20 |
| E117007 | 16 | C x C | 20 |
| E117008 | 18 | C x C | 20 |
| E117009 | 22 | C x C | 10 |
| E117010 | 28 | C x C | 10 |
| E117011 | 35 | C x C | 5 |
| E117013 | 42 | C x C | 2 |
| E117014 | 54 | C x C | 1 |
