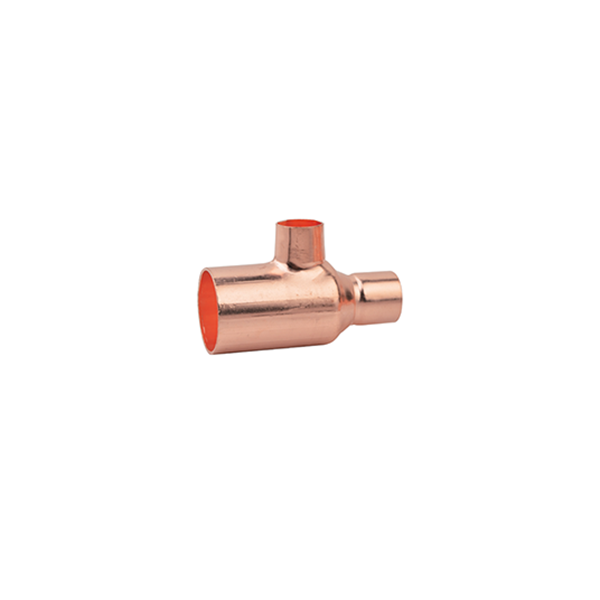

Name: Reducing Tees (C x C x C)
Brand: SHL-Limited
SKU: 108
Availability: InStock
Rating: 5 (1 reviews)

Home > Copper Fittings > Tee

Description Review

Description

BASIC INFO.

Product Name	Copper Reducing Tees
Type	C x C x C
Material	C12200/Cu-DHP
Standard	ASME B16.22, EN 1254
Size Range	1/8" x 1/8" x 1/4" ~ 8" x 8" x 6" (15mm x 15mm x 12mm ~ 159mm x 159mm x 133mm)
Transport Package	Sealing Bag + Carton Case/Wooden Pallet
Delivery Time	7 ~ 10 days
Application	For plumbing, water supply, refrigeration, medical gas, etc.
Origin	China

SPECIFICATION

ASME B16.22
Item No.	Nominal Size (inch)	Actual Size (inch)	Connection Type	Bag Quantity
A1080101	1/8" x 1/8" x 1/4"	1/4" x 1/4" x 3/8"	C x C x C	50
A1080201	1/4" x 1/4" x 1/2"	3/8" x 3/8" x 5/8"	C x C x C	50
A1080202	1/4" x 1/4" x 3/8"	3/8" x 3/8" x 1/2"	C x C x C	50
A1080203	1/4" x 1/4" x 1/8"	3/8" x 3/8" x 1/4"	C x C x C	50
A1080204	1/4" x 1/8" x 1/4"	3/8" x 1/4" x 3/8"	C x C x C	50
A1080205	1/4" x 1/8" x 1/8"	3/8" x 1/4" x 1/4"	C x C x C	50
A1080301	3/8" x 3/8" x 1/2"	1/2" x 1/2" x 5/8"	C x C x C	50
A1080302	3/8" x 3/8" x 1/4"	1/2" x 1/2" x 3/8"	C x C x C	50
A1080303	3/8" x 3/8" x 1/8"	1/2" x 1/2" x 1/4"	C x C x C	50
A1080304	3/8" x 1/4" x 3/8"	1/2" x 3/8" x 1/2"	C x C x C	50
A1080305	3/8" x 1/4" x 1/4"	1/2" x 3/8" x 3/8"	C x C x C	50
A1080306	3/8" x 1/4" x 1/8"	1/2" x 3/8" x 1/4"	C x C x C	50
A1080307	3/8" x 1/8" x 3/8"	1/2" x 1/4" x 1/2"	C x C x C	50
A1080308	3/8" x 1/8" x 1/4"	1/2" x 1/4" x 3/8"	C x C x C	50
A1080309	3/8" x 1/8" x 1/8"	1/2" x 1/4" x 1/4"	C x C x C	50
A1080401	1/2" x 1/2" x 1"	5/8" x 5/8" x 1-1/8"	C x C x C	25
A1080402	1/2" x 1/2" x 3/4"	5/8" x 5/8" x 7/8"	C x C x C	25
A1080403	1/2" x 1/2" x 5/8"	5/8" x 5/8" x 3/4"	C x C x C	25
A1080404	1/2" x 1/2" x 3/8"	5/8" x 5/8" x 1/2"	C x C x C	25
A1080405	1/2" x 1/2" x 1/4"	5/8" x 5/8" x 3/8"	C x C x C	25
A1080406	1/2" x 1/2" x 1/8"	5/8" x 5/8" x 1/4"	C x C x C	25
A1080407	1/2" x 3/8" x 1/2"	5/8" x 1/2" x 5/8"	C x C x C	25
A1080408	1/2" x 3/8" x 3/8"	5/8" x 1/2" x 1/2"	C x C x C	25
A1080409	1/2" x 3/8" x 1/4"	5/8" x 1/2" x 3/8"	C x C x C	25
A1080410	1/2" x 1/4" x 1/2"	5/8" x 3/8 "x 5/8"	C x C x C	25
A1080411	1/2" x 1/4" x 3/8"	5/8" x 3/8" x 1/2"	C x C x C	25
A1080412	1/2" x 1/4" x 1/4"	5/8" x 3/8" x 3/8"	C x C x C	25
A1080501	5/8" x 5/8" x 3/4"	3/4" x 3/4" x 7/8"	C x C x C	25
A1080502	5/8" x 5/8" x 1/2"	3/4" x 3/4" x 5/8"	C x C x C	25
A1080503	5/8" x 5/8" x 3/8"	3/4" x 3/4" x 1/2"	C x C x C	25
A1080504	5/8" x 5/8" x 1/4"	3/4" x 3/4" x 3/8"	C x C x C	25
A1080505	5/8" x 1/2" x 5/8"	3/4" x 5/8" x 3/4"	C x C x C	25
A1080506	5/8" x 1/2" x 1/2"	3/4" x 5/8" x 5/8"	C x C x C	25
A1080507	5/8" x 1/2" x 3/8"	3/4" x 5/8" x 1/2"	C x C x C	25
A1080508	5/8" x 3/8 "x 5/8"	3/4" x 1/2" x 3/4"	C x C x C	25
A1080509	5/8" x 3/8" x 1/2"	3/4" x 1/2" x 5/8"	C x C x C	25
A1080510	5/8" x 3/8" x 3/8"	3/4" x 1/2" x 1/2"	C x C x C	25
A1080601	3/4" x 3/4" x 1"	7/8" x 7/8" x1-1/8"	C x C x C	10
A1080602	3/4" x 3/4" x 5/8"	7/8" x 7/8" x 3/4"	C x C x C	10
A1080603	3/4" x 3/4" x 1/2"	7/8" x 7/8" x 5/8"	C x C x C	10
A1080604	3/4" x 3/4" x 3/8"	7/8" x 7/8" x 1/2"	C x C x C	10
A1080605	3/4" x 3/4" x 1/4"	7/8" x 7/8" x 3/8"	C x C x C	10
A1080606	3/4" x 5/8" x 3/4"	7/8" x 3/4" x 7/8"	C x C x C	10
A1080607	3/4" x 5/8" x 5/8"	7/8" x 3/4" x 3/4"	C x C x C	10
A1080608	3/4" x 1/2" x 3/4"	7/8" x 5/8" x 7/8"	C x C x C	10
A1080609	3/4" x 1/2" x 1/2"	7/8" x 5/8" x 5/8"	C x C x C	10
A1080610	3/4" x 1/2" x 3/8"	7/8" x 5/8" x 1/2"	C x C x C	10
A1080611	3/4" x 3/8" x 1/2"	7/8" x 1/2" x 5/8"	C x C x C	10
A1080612	3/4" x 3/8" x 3/8"	7/8" x 1/2" x 1/2"	C x C x C	10
A1080701	1" x 1" x 1-1/2"	1-1/8" x 1-1/8" x 1-5/8"	C x C x C	10
A1080702	1" x 1" x 1-1/4"	1-1/8" x 1-1/8" x 1-3/8"	C x C x C	10
A1080703	1" x 1" x 3/4"	1-1/8" x 1-1/8" x 7/8"	C x C x C	10
A1080704	1" x 1" x 5/8"	1-1/8" x 1-1/8" x 3/4"	C x C x C	10
A1080705	1" x 1" x 1/2"	1-1/8" x 1-1/8" x 5/8"	C x C x C	10
A1080706	1" x 1" x 3/8"	1-1/8" x 1-1/8" x 1/2"	C x C x C	10
A1080707	1" x 1" x 1/4"	1-1/8" x 1-1/8" x 3/8"	C x C x C	10
A1080708	1" x 3/4" x 1"	1-1/8" x 7/8" x 1-1/8"	C x C x C	10
A1080709	1" x 3/4" x 3/4"	1-1/8" x 7/8" x 7/8"	C x C x C	10
A1080710	1" x 3/4" x 5/8"	1-1/8" x 7/8" x 3/4"	C x C x C	10
A1080711	1" x 3/4" x 1/2"	1-1/8" x 7/8" x 5/8"	C x C x C	10
A1080712	1" x 3/4" x 3/8"	1-1/8" x 7/8" x 1/2"	C x C x C	10
A1080713	1" x 5/8" x 1"	1-1/8" x 3/4" x 1-1/8"	C x C x C	10
A1080714	1" x 5/8" x 5/8"	1-1/8" x 3/4" x 3/4"	C x C x C	10
A1080715	1" x 1/2" x 1"	1-1/8" x 5/8" x 1-1/8"	C x C x C	10
A1080716	1" x 1/2" x 3/4"	1-1/8" x 5/8" x 7/8"	C x C x C	10
A1080717	1" x 1/2" x 1/2"	1-1/8" x 5/8" x 5/8"	C x C x C	10
A1080801	1-1/4" x 1-1/4" x 2"	1-3/8" x 1-3/8" x 2-1/8"	C x C x C	5
A1080802	1-1/4" x 1-1/4" x 1-1/2"	1-3/8" x 1-3/8" x 1-5/8"	C x C x C	5
A1080803	1-1/4" x 1-1/4" x 1"	1-3/8" x 1-3/8" x 1-1/8"	C x C x C	5
A1080804	1-1/4" x 1-1/4" x 3/4"	1-3/8" x 1-3/8" x 7/8"	C x C x C	5
A1080805	1-1/4" x 1-1/4" x 5/8"	1-3/8" x 1-3/8" x 3/4"	C x C x C	5
A1080806	1-1/4" x 1-1/4" x 1/2"	1-3/8" x 1-3/8" x 5/8"	C x C x C	5
A1080807	1-1/4" x 1-1/4" x 3/8"	1-3/8" x 1-3/8" x 1/2"	C x C x C	5
A1080808	1-1/4" x 1"x 1-1/4"	1-3/8" x 1-1/8" x 1-3/8"	C x C x C	5
A1080809	1-1/4" x 1"x 1"	1-3/8" x 1-1/8" x 1-1/8"	C x C x C	5
A1080810	1-1/4" x 1"x 3/4"	1-3/8" x 1-1/8" x 7/8"	C x C x C	5
A1080811	1-1/4" x 1"x 1/2"	1-3/8" x 1-1/8" x 5/8"	C x C x C	5
A1080812	1-1/4" x 3/4" x 1-1/4"	1-3/8" x 7/8" x 1-3/8"	C x C x C	5
A1080813	1-1/4" x 3/4" x 1"	1-3/8" x 7/8" x 1-1/8"	C x C x C	5
A1080814	1-1/4" x 3/4" x 3/4"	1-3/8" x 7/8" x 7/8"	C x C x C	5
A1080815	1-1/4" x 3/4" x 1/2"	1-3/8" x 7/8" x 5/8"	C x C x C	5
A1080816	1-1/4" x 1/2" x 1-1/4"	1-3/8" x 5/8" x 1-3/8"	C x C x C	5
A1080817	1-1/4" x 1/2" x 1"	1-3/8" x 5/8" x 1-1/8"	C x C x C	5
A1080818	1-1/4" x 1/2" x 3/4"	1-3/8" x 5/8" x 7/8"	C x C x C	5
A1080819	1-1/4" x 1/2" x 1/2"	1-3/8" x 5/8" x 5/8"	C x C x C	5
A1080901	1-1/2" x 1-1/2" x 2"	1-5/8" x 1-5/8" x 2-1/8"	C x C x C	2
A1080902	1-1/2" x 1-1/2" x 1-1/4"	1-5/8" x 1-5/8" x 1-3/8"	C x C x C	2
A1080903	1-1/2" x 1-1/2" x 1"	1-5/8" x 1-5/8" x 1-1/8"	C x C x C	2
A1080904	1-1/2" x 1-1/2" x 3/4"	1-5/8" x 1-5/8" x 7/8"	C x C x C	2
A1080905	1-1/2" x 1-1/2" x 5/8"	1-5/8" x 1-5/8" x 3/4"	C x C x C	2
A1080906	1-1/2" x 1-1/2" x 1/2"	1-5/8" x 1-5/8" x 5/8"	C x C x C	2
A1080907	1-1/2" x 1-1/4" x 1-1/4"	1-5/8" x 1-3/8" x 1-3/8"	C x C x C	2
A1080908	1-1/2" x 1-1/4" x 1"	1-5/8" x 1-3/8" x 1-1/8"	C x C x C	2
A1080909	1-1/2" x 1-1/4" x 3/4"	1-5/8" x 1-3/8" x 7/8"	C x C x C	2
A1080910	1-1/2" x 1-1/4" x 1/2"	1-5/8" x 1-3/8" x 5/8"	C x C x C	2
A1080911	1-1/2" x 1" x 1-1/2"	1-5/8" x 1-1/8" x 1-5/8"	C x C x C	2
A1080912	1-1/2" x 1" x 1-1/4"	1-5/8" x 1-1/8" x 1-3/8"	C x C x C	2
A1080913	1-1/2" x 1" x 1"	1-5/8" x 1-1/8" x 1-1/8"	C x C x C	2
A1080914	1-1/2" x 1" x 3/4"	1-5/8" x 1-1/8" x 7/8"	C x C x C	2
A1080915	1-1/2" x 1" x 1/2"	1-5/8" x 1-1/8" x 5/8"	C x C x C	2
A1080916	1-1/2" x 3/4" x 1-1/4"	1-5/8" x 7/8" x 1-3/8"	C x C x C	2
A1080917	1-1/2" x 3/4" x 1"	1-5/8" x 7/8" x 1-1/8"	C x C x C	2
A1080918	1-1/2" x 3/4" x 3/4"	1-5/8" x 7/8" x 7/8"	C x C x C	2
A1080919	1-1/2" x 3/4" x 1/2"	1-5/8" x 7/8" x 5/8"	C x C x C	2
A1080920	1-1/2" x 1/2" x 1-1/2"	1-5/8" x 5/8" x 1-5/8"	C x C x C	2
A1080921	1-1/2" x 1/2" x 1-1/4"	1-5/8" x 5/8" x 1-3/8"	C x C x C	2
A1080922	1-1/2" x 1/2" x 1"	1-5/8" x 5/8" x 1-1/8"	C x C x C	2
A1081101	2" x 2" x 2-1/2"	2-1/8" x 2-1/8" x 2-5/8"	C x C x C	2
A1081102	2" x 2" x 1-1/2"	2-1/8" x 2-1/8" x 1-5/8"	C x C x C	2
A1081103	2" x 2" x 1-1/4"	2-1/8" x 2-1/8" x 1-3/8"	C x C x C	2
A1081104	2" x 2" x 1"	2-1/8" x 2-1/8" x 1-1/8"	C x C x C	2
A1081105	2" x 2" x 3/4"	2-1/8" x 2-1/8" x 7/8"	C x C x C	2
A1081106	2" x 2" x 5/8"	2-1/8" x 2-1/8" x 3/4"	C x C x C	2
A1081107	2" x 2" x 1/2"	2-1/8" x 2-1/8" x 5/8"	C x C x C	2
A1081108	2" x 1-1/2" x 2"	2-1/8" x 1-5/8" x 2-1/8"	C x C x C	2
A1081109	2" x 1-1/2" x 1-1/2"	2-1/8" x 1-5/8" x 1-5/8"	C x C x C	2
A1081110	2" x 1-1/2" x 1-1/4"	2-1/8" x 1-5/8" x 1-3/8"	C x C x C	2
A1081111	2" x 1-1/2" x 1"	2-1/8" x 1-5/8" x 1-1/8"	C x C x C	2
A1081112	2" x 1-1/2" x 3/4"	2-1/8" x 1-5/8" x 7/8"	C x C x C	2
A1081113	2" x 1-1/2" x 1/2"	2-1/8" x 1-5/8" x 5/8"	C x C x C	2
A1081114	2" x 1-1/4" x 2"	2-1/8" x 1-3/8" x 2-1/8"	C x C x C	2
A1081115	2" x 1-1/4" x 1-1/2"	2-1/8" x 1-3/8" x 1-5/8"	C x C x C	2
A1081116	2" x 1-1/4" x 1-1/4"	2-1/8" x 1-3/8" x 1-3/8"	C x C x C	2
A1081117	2" x 1-1/4" x 1"	2-1/8" x 1-3/8" x 1-1/8"	C x C x C	2
A1081118	2" x 1-1/4" x 3/4"	2-1/8" x 1-3/8" x 7/8"	C x C x C	2
A1081119	2" x 1-1/4" x 1/2"	2-1/8" x 1-3/8" x 5/8"	C x C x C	2
A1081120	2" x 1" x 1-1/2"	2-1/8" x 1-1/8" x 1-5/8"	C x C x C	2
A1081121	2" x 1" x 1-1/4"	2-1/8" x 1-1/8" x 1-3/8"	C x C x C	2
A1081122	2" x 1" x 1"	2-1/8" x 1-1/8" x 1-1/8"	C x C x C	2
A1081123	2" x 3/4" x 2"	2-1/8" x 7/8" x 2-1/8"	C x C x C	2
A1081124	2" x 3/4" x 1-1/2"	2-1/8" x 7/8" x 1-5/8"	C x C x C	2
A1081125	2" x 3/4" x 1-1/4"	2-1/8" x 7/8" x 1-3/8"	C x C x C	2
A1081126	2" x 3/4" x 1"	2-1/8" x 7/8" x 1-1/8"	C x C x C	2
A1081127	2" x 3/4" x 3/4"	2-1/8" x 7/8" x 7/8"	C x C x C	2
A1081128	2" x 1/2" x 2"	2-1/8" x 5/8" x 2-1/8"	C x C x C	2
A1081201	2-1/2" x 2-1/2" x 3"	2-5/8" x 2-5/8" x 3-1/8"	C x C x C	1
A1081202	2-1/2" x 2-1/2" x 2"	2-5/8" x 2-5/8" x 2-1/8"	C x C x C	1
A1081203	2-1/2" x 2-1/2" x 1-1/2"	2-5/8" x 2-5/8" x 1-5/8"	C x C x C	1
A1081204	2-1/2" x 2-1/2" x 1-1/4"	2-5/8" x 2-5/8" x 1-3/8"	C x C x C	1
A1081205	2-1/2" x 2-1/2" x 1"	2-5/8" x 2-5/8" x 1-1/8"	C x C x C	1
A1081206	2-1/2" x 2-1/2" x 3/4"	2-5/8" x 2-5/8" x 7/8"	C x C x C	1
A1081207	2-1/2" x 2-1/2" x 5/8"	2-5/8" x 2-5/8" x 3/4"	C x C x C	1
A1081208	2-1/2" x 2-1/2" x 1/2"	2-5/8" x 2-5/8" x 5/8"	C x C x C	1
A1081209	2-1/2" x 1-1/2" x 2"	2-5/8" x 1-5/8" x 2-1/8"	C x C x C	1
A1081210	2-1/2" x 1-1/2" x 1-1/2"	2-5/8" x 1-5/8" x 1-5/8"	C x C x C	1
A1081211	2-1/2" x 1-1/2" x 1-1/4"	2-5/8" x 1-5/8" x 1-3/8"	C x C x C	1
A1081212	2-1/2" x 1-1/2" x 1"	2-5/8" x 1-5/8" x 1-1/8"	C x C x C	1
A1081213	2-1/2" x 1-1/2" x 3/4"	2-5/8" x 1-5/8" x 7/8"	C x C x C	1
A1081214	2-1/2" x 1-1/2" x 1/2"	2-5/8" x 1-5/8" x 5/8"	C x C x C	1
A1081215	2-1/2" x 2" x 2-1/2"	2-5/8" x 2-1/8" x 2-5/8"	C x C x C	1
A1081216	2-1/2" x 2" x 2"	2-5/8" x 2-1/8" x 2-1/8"	C x C x C	1
A1081217	2-1/2" x 2" x 1-1/2"	2-5/8" x 2-1/8" x 1-5/8"	C x C x C	1
A1081218	2-1/2" x 2" x 1-1/4"	2-5/8" x 2-1/8" x 1-3/8"	C x C x C	1
A1081219	2-1/2" x 2" x 1"	2-5/8" x 2-1/8" x 1-1/8"	C x C x C	1
A1081220	2-1/2" x 2" x 3/4"	2-5/8" x 2-1/8" x 7/8"	C x C x C	1
A1081221	2-1/2" x 2" x 1/2"	2-5/8" x 2-1/8" x 5/8"	C x C x C	1
A1081222	2-1/2" x 1-1/2" x 2-1/2"	2-5/8" x 1-5/8" x 2-5/8"	C x C x C	1
A1081223	2-1/2" x 1-1/2" x 2"	2-5/8" x 1-5/8" x 2-1/8"	C x C x C	1
A1081224	2-1/2" x 1-1/2" x 1-1/2"	2-5/8" x 1-5/8" x 1-5/8"	C x C x C	1
A1081225	2-1/2" x 1-1/2" x 1-1/4"	2-5/8" x 1-5/8" x 1-3/8"	C x C x C	1
A1081226	2-1/2" x 1-1/2" x 1"	2-5/8" x 1-5/8" x 1-1/8"	C x C x C	1
A1081227	2-1/2" x 1-1/4" x 2-1/2"	2-5/8" x 1-3/8" x 2-5/8"	C x C x C	1
A1081228	2-1/2" x 1-1/4" x 2"	2-5/8" x 1-3/8" x 2-1/8"	C x C x C	1
A1081229	2-1/2" x 1-1/4" x 1-1/4"	2-5/8" x 1-3/8" x 1-3/8"	C x C x C	1
A1081230	2-1/2" x 1" x 2-1/2"	2-5/8" x 1-1/8" x 2-5/8"	C x C x C	1
A1081231	2-1/2" x 1" x 2"	2-5/8" x 1-1/8" x 2-1/8"	C x C x C	1
A1081232	2-1/2" x 3/4" x 2-1/2"	2-5/8" x 7/8" x 2-5/8"	C x C x C	1
A1081233	2-1/2" x 1/2" x 2-1/2"	2-5/8" x 5/8" x 2-5/8"	C x C x C	1
A1081301	3" x 3" x 4"	3-1/8" x 3-1/8" x 4-1/8"	C x C x C	1
A1081302	3" x 3" x 2-1/2"	3-1/8" x 3-1/8" x 2-5/8"	C x C x C	1
A1081303	3" x 3" x 2"	3-1/8" x 3-1/8" x 2-1/8"	C x C x C	1
A1081304	3" x 3" x 1-1/2"	3-1/8" x 3-1/8" x 1-5/8"	C x C x C	1
A1081305	3" x 3" x 1-1/4"	3-1/8" x 3-1/8" x 1-3/8"	C x C x C	1
A1081306	3" x 3" x 1"	3-1/8" x 3-1/8" x 1-1/8"	C x C x C	1
A1081307	3" x 3" x 3/4"	3-1/8" x 3-1/8" x 7/8"	C x C x C	1
A1081308	3" x 3" x 5/8"	3-1/8" x 3-1/8" x 3/4"	C x C x C	1
A1081309	3" x 3" x 1/2"	3-1/8" x 3-1/8" x 5/8"	C x C x C	1
A1081310	3" x 2-1/2" x 3"	3-1/8" x 2-5/8" x 3-1/8"	C x C x C	1
A1081311	3" x 2-1/2" x 2-1/2"	3-1/8" x 2-5/8" x 2-5/8"	C x C x C	1
A1081312	3" x 2-1/2" x 2"	3-1/8" x 2-5/8" x 2-1/8"	C x C x C	1
A1081313	3" x 2-1/2" x 1-1/2"	3-1/8" x 2-5/8" x 1-5/8"	C x C x C	1
A1081314	3" x 2-1/2" x 1-1/4"	3-1/8" x 2-5/8" x 1-3/8"	C x C x C	1
A1081315	3" x 2-1/2" x 1"	3-1/8" x 2-5/8" x 1-1/8"	C x C x C	1
A1081316	3" x 2-1/2" x 3/4"	3-1/8" x 2-5/8" x 7/8"	C x C x C	1
A1081317	3" x 2" x 3"	3-1/8" x 2-1/8" x 3-1/8"	C x C x C	1
A1081318	3" x 2" x 2-1/2"	3-1/8" x 2-1/8" x 2-5/8"	C x C x C	1
A1081319	3" x 2" x 2"	3-1/8" x 2-1/8" x 2-1/8"	C x C x C	1
A1081320	3" x 2" x 1-1/2"	3-1/8" x 2-1/8" x 1-5/8"	C x C x C	1
A1081321	3" x 2" x 1-1/4"	3-1/8" x 2-1/8" x 1-3/8"	C x C x C	1
A1081322	3" x 2" x 1"	3-1/8" x 2-1/8" x 1-1/8"	C x C x C	1
A1081323	3" x 1-1/2" x 3"	3-1/8" x 1-5/8" x 3-1/8"	C x C x C	1
A1081324	3" x 1-1/2" x 2"	3-1/8" x 1-5/8" x 2-1/8"	C x C x C	1
A1081325	3" x 1-1/2" x 1-1/2"	3-1/8" x 1-5/8" x 1-5/8"	C x C x C	1
A1081326	3" x 1-1/2" x 1-1/4"	3-1/8" x 1-5/8" x 1-3/8"	C x C x C	1
A1081327	3" x 1-1/4" x 3"	3-1/8" x 1-3/8" x 3-1/8"	C x C x C	1
A1081328	3" x 1" x 3"	3-1/8" x 1-1/8" x 3-1/8"	C x C x C	1
A1081329	3" x 3/4" x 3"	3-1/8" x 7/8" x 3-1/8"	C x C x C	1
A1081401	4" x 4" x 3"	4-1/8" x 4-1/8" x 3-1/8"	C x C x C	1
A1081402	4" x 4" x 2-1/2"	4-1/8" x 4-1/8" x 2-5/8"	C x C x C	1
A1081403	4" x 4" x 2"	4-1/8" x 4-1/8" x 2-1/8"	C x C x C	1
A1081404	4" x 4" x 1-1/2"	4-1/8" x 4-1/8" x 1-5/8"	C x C x C	1
A1081405	4" x 4" x 1-1/4"	4-1/8" x 4-1/8" x 1-3/8"	C x C x C	1
A1081406	4" x 4" x 1"	4-1/8" x 4-1/8" x 1-1/8"	C x C x C	1
A1081407	4" x 4" x 3/4"	4-1/8" x 4-1/8" x 7/8"	C x C x C	1
A1081408	4" x 4" x 5/8"	4-1/8" x 4-1/8" x 3/4"	C x C x C	1
A1081409	4" x 4" x 1/2"	4-1/8" x 4-1/8" x 5/8"	C x C x C	1
A1081410	4" x 3" x 4"	4-1/8" x 3-1/8" x 4-1/8"	C x C x C	1
A1081411	4" x 3" x 3"	4-1/8" x 3-1/8" x 3-1/8"	C x C x C	1
A1081412	4" x 3" x 2-1/2"	4-1/8" x 3-1/8" x 2-5/8"	C x C x C	1
A1081413	4" x 3" x 2"	4-1/8" x 3-1/8" x 2-1/8"	C x C x C	1
A1081414	4" x 2-1/2" x 4"	4-1/8" x 2-5/8" x 4-1/8"	C x C x C	1
A1081415	4" x 2-1/2" x 3"	4-1/8" x 2-5/8" x 3-1/8"	C x C x C	1
A1081416	4" x 2-1/2" x 2-1/2"	4-1/8" x 2-5/8" x 2-5/8"	C x C x C	1
A1081417	4" x 2" x 4"	4-1/8" x 2-1/8" x 4-1/8"	C x C x C	1
A1081418	4" x 2" x 3"	4-1/8" x 2-1/8" x 3-1/8"	C x C x C	1
A1081419	4" x 2" x 2-1/2"	4-1/8" x 2-1/8" x 2-5/8"	C x C x C	1
A1081420	4" x 2" x 2"	4-1/8" x 2-1/8" x 2-1/8"	C x C x C	1
A1081421	4" x 1-1/2" x 4"	4-1/8" x 1-5/8" x 4-1/8"	C x C x C	1
A1081422	4" x 1-1/4" x 4"	4-1/8" x 1-3/8" x 4-1/8"	C x C x C	1
A1081423	4" x 1" x 4"	4-1/8" x 1-1/8" x 4-1/8"	C x C x C	1
A1081501	5" x 5" x 4"	5-1/8" x 5-1/8" x 4-1/8"	C x C x C	1
A1081502	5" x 5" x 3"	5-1/8" x 5-1/8" x 3-1/8"	C x C x C	1
A1081503	5" x 5" x 2-1/2"	5-1/8" x 5-1/8" x 2-5/8"	C x C x C	1
A1081504	5" x 5" x 2"	5-1/8" x 5-1/8" x 2-1/8"	C x C x C	1
A1081505	5" x 5" x 1-1/2"	5-1/8" x 5-1/8" x 1-5/8"	C x C x C	1
A1081506	5" x 5" x 1-1/4"	5-1/8" x 5-1/8" x 1-3/8"	C x C x C	1
A1081507	5" x 5" x 1"	5-1/8" x 5-1/8" x 1-1/8"	C x C x C	1
A1081508	5" x 5" x 3/4"	5-1/8" x 5-1/8" x 7/8"	C x C x C	1
A1081509	5" x 4" x 5"	5-1/8" x 4-1/8" x 5-1/8"	C x C x C	1
A1081510	5" x 4" x 4"	5-1/8" x 4-1/8" x 4-1/8"	C x C x C	1
A1081601	6" x 6" x 5"	6-1/8" x 6-1/8" x 5-1/8"	C x C x C	1
A1081602	6" x 6" x 4"	6-1/8" x 6-1/8" x 4-1/8"	C x C x C	1
A1081603	6" x 6" x 3"	6-1/8" x 6-1/8" x 3-1/8"	C x C x C	1
A1081604	6" x 6" x 2-1/2"	6-1/8" x 6-1/8" x 2-5/8"	C x C x C	1
A1081605	6" x 6" x 2"	6-1/8" x 6-1/8" x 2-1/8"	C x C x C	1
A1081606	6" x 6" x 1-1/2"	6-1/8" x 6-1/8" x 1-5/8"	C x C x C	1
A1081607	6" x 6" x 1-1/4"	6-1/8" x 6-1/8" x 1-3/8"	C x C x C	1
A1081608	6" x 6" x 1"	6-1/8" x 6-1/8" x 1-1/8"	C x C x C	1
A1081609	6" x 6" x 3/4"	6-1/8" x 6-1/8" x 7/8"	C x C x C	1
A1081610	6" x 6" x 1/2"	6-1/8" x 6-1/8" x 5/8"	C x C x C	1
A1081611	6" x 4" x 6"	6-1/8" x 4-1/8" x 6-1/8"	C x C x C	1
A1081612	6" x 4" x 4"	6-1/8" x 4-1/8" x 4-1/8"	C x C x C	1
A1081701	8" x 8" x 6"	8-1/8" x 8-1/8" x 6-1/8"	C x C x C	1
A1081702	8" x 8" x 5"	8-1/8" x 8-1/8" x 5-1/8"	C x C x C	1
A1081703	8" x 8" x 4"	8-1/8" x 8-1/8" x 4-1/8"	C x C x C	1
A1081704	8" x 8" x 3"	8-1/8" x 8-1/8" x 3-1/8"	C x C x C	1
A1081705	8" x 8" x 2-1/2"	8-1/8" x 8-1/8" x 2-5/8"	C x C x C	1
A1081706	8" x 8" x 2"	8-1/8" x 8-1/8" x 2-1/8"	C x C x C	1
A1081707	8" x 6" x 6"	8-1/8" x 6-1/8" x 6-1/8"	C x C x C	1

EN 1254
Item No.	Size (mm)	Connection Type	Bag Quantity
E108016	15 x 15 x 12	C x C x C	50
E108017	15 x 15 x 10	C x C x C	50
E108030	18 x 18 x 22	C x C x C	20
E108032	18 x 18 x 15	C x C x C	20
E108033	18 x 18 x 12	C x C x C	20
E108034	18 x 18 x 10	C x C x C	20
E108040	22 x 22 x 28	C x C x C	10
E108041	22 x 22 x 18	C x C x C	20
E108043	22 x 22 x 15	C x C x C	20
E108044	22 x 22 x 12	C x C x C	20
E108045	22 x 22 x 10	C x C x C	20
E108046	22 x 18 x 22	C x C x C	20
E108047	22 x 18 x 18	C x C x C	20
E108050	22 x 15 x 22	C x C x C	20
E108051	22 x 15 x 15	C x C x C	20
E108060	28 x 28 x 35	C x C x C	5
E108061	28 x 28 x 22	C x C x C	10
E108062	28 x 28 x 18	C x C x C	10
E108064	28 x 28 x 15	C x C x C	10
E108065	28 x 28 x 12	C x C x C	10
E108066	28 x 22 x 28	C x C x C	10
E108068	28 x 22 x 15	C x C x C	10
E108080	35 x 35 x 42	C x C x C	2
E108081	35 x 35 x 28	C x C x C	5
E108082	35 x 35 x 22	C x C x C	5
E108083	35 x 35 x 18	C x C x C	5
E108085	35 x 35 x 15	C x C x C	5
E108086	35 x 28 x 35	C x C x C	5
E108087	35 x 28 x 28	C x C x C	5
E108088	35 x 28 x 22	C x C x C	5
E108089	35 x 28 x 18	C x C x C	5
E108091	35 x 28 x 15	C x C x C	5
E108100	42 x 42 x 54	C x C x C	1
E108101	42 x 42 x 35	C x C x C	2
E108102	42 x 42 x 28	C x C x C	2
E108103	42 x 42 x 22	C x C x C	2
E108104	42 x 42 x 18	C x C x C	2
E108106	42 x 42 x 15	C x C x C	2
E108107	42 x 35 x 42	C x C x C	2
E108108	42 x 35 x 35	C x C x C	2
E108109	42 x 35 x 28	C x C x C	2
E108110	42 x 35 x 22	C x C x C	2
E108111	42 x 35 x 18	C x C x C	2
E108113	42 x 35 x 15	C x C x C	2
E108130	54 x 54 x 67	C x C x C	1
E108131	54 x 54 x 42	C x C x C	1
E108132	54 x 54 x 35	C x C x C	1
E108133	54 x 54 x 28	C x C x C	1
E108134	54 x 54 x 22	C x C x C	1
E108135	54 x 54 x 18	C x C x C	1
E108137	54 x 54 x 15	C x C x C	1
E108138	54 x 42 x 54	C x C x C	1
E108139	54 x 42 x 42	C x C x C	1
E108140	54 x 42 x 35	C x C x C	1
E108141	54 x 42 x 28	C x C x C	1
E108142	54 x 42 x 22	C x C x C	1
E108160	67 x 67 x 54	C x C x C	1
E108161	67 x 67 x 42	C x C x C	1
E108162	67 x 67 x 35	C x C x C	1
E108170	76 x 76 x 67	C x C x C	1
E108171	76 x 76 x 54	C x C x C	1
E108172	76 x 76 x 42	C x C x C	1
E108173	76 x 76 x 35	C x C x C	1
E108180	89 x 89 x 76	C x C x C	1
E108181	89 x 89 x 67	C x C x C	1
E108182	89 x 89 x 54	C x C x C	1
E108183	89 x 89 x 42	C x C x C	1
E108190	108 x 108 x 89	C x C x C	1
E108191	108 x 108 x 76	C x C x C	1
E108192	108 x 108 x 67	C x C x C	1
E108193	108 x 108 x 54	C x C x C	1
E108194	108 x 108 x 42	C x C x C	1
E108200	133 x 133 x 108	C x C x C	1
E108201	133 x 133 x 89	C x C x C	1
E108210	159 x 159 x 133	C x C x C	1
E108211	159 x 159 x 108	C x C x C	1

Review

Send your message to us

* First Name

Last Name

* Email

Country

please select your country

Afghanistan
Aland Islands
Albania
Algeria
American Samoa
Andorra
Angola
Anguilla
Antigua and Barbuda
Argentina
Armenia
Aruba
Australia
Austria
Azerbaijan
Bahamas
Bahrain
Bangladesh
Barbados
Belarus
Belgium
Belize
Benin
Bermuda
Bhutan
Bolivia
Bosnia and Herzegovina
Botswana
Bouvet Island
Brazil
British Indian Ocean Territory
British Virgin Islands
Brunei Darussalam
Bulgaria
Burkina Faso
Burundi
Cambodia
Cameroon
Canada
Cape Verde
Caribbean Netherlands
Cayman Islands
Central African Republic
Chad
Chile
China
Christmas Island
Cocos Islands
Colombia
Comoros
Congo
Cook Islands
Costa Rica
Cote D'ivoire
Cuba
Curaçao
Cyprus
Czech Republic
Democratic People's Republic of Korea
Democratic Republic of the Congo
Denmark
Djibouti
Dominica
East Timor
Ecuador
Egypt
El Salvador
Equatorial Guinea
Eritrea
Estonia
Ethiopia
Falkland Islands
Faroe Islands
Fiji
Finland
France
French Guiana
French Polynesia
French Southern Territories
Gabon
Gambia
Georgia
Germany
Ghana
Gibraltar
Greece
Greenland
Grenada
Guadeloupe
Guam
Guatemala
Guernsey
Guinea
Guinea-Bissau
Guyana
Haiti
Heard Island and Mcdonald Islands
Honduras
Hong Kong, China
Hungary
Iceland
India
Indonesia
Iran
Iraq
Ireland
Isle of Man
Israel
Italy
Jamaica
Japan
Jordan
Kazakhstan
Kenya
Kiribati
Korea
Kosovo
Kuwait
Kyrgyzstan
Laos
Latvia
Lebanon
Lesotho
Liberia
Liechtenstein
Lithuania
Luxembourg
Macau, China
Macedonia
Madagascar
Malawi
Malaysia
Maldives
Mali
Malta
Marshall Islands
Martinique
Mauritania
Mauritius
Mayotte
Mexico
Micronesia
Moldova
Monaco
Mongolia
Montenegro
Montserrat
Morocco
Mozambique
Myanmar
Namibia
Nauru
Nepal
Netherlands
Netherlands Antilles
New Caledonia
New Zealand
Nicaragua
Niger
Nigeria
Niue
Norfolk Island
Northern Mariana Islands
Norway
Oman
Pakistan
Palau
Palestine
Panama
Papua New Guinea
Paraguay
Peru
Philippines
Pitcairn Islands
Poland
Portugal
Puerto Rico
Qatar
Reunion
Romania
Russia
Rwanda
Saint Barthélemy
Saint Helena
Saint Kitts and Nevis
Saint Lucia
Saint Martin
Saint Pierre and Miquelon
Saint Vincent and the Grenadines
San Marino
Sao Tome and Principe
Saudi Arabia
Senegal
Serbia
Seychelles
Sierra Leone
Singapore
Sint Maarten
Slovakia
Slovenia
Solomon Islands
Somalia
South Africa
South Georgia and The South Sandwich Islands
Spain
Sri Lanka
State of Libya
Sudan
Suriname
Svalbard and Jan Mayen
Swaziland
Sweden
Switzerland
Syrian Arab Republic
TaiWan, China
Tajikistan
Tanzania
Thailand
The Republic of Croatia
Togo
Tokelau
Tonga
Trinidad and Tobago
Tunisia
Turkey
Turkmenistan
Turks and Caicos Islands
Tuvalu
Uganda
Ukraine
United Arab Emirates
United Kingdom
United States
United States Minor Outlying Islands
Uruguay
US Virgin Islands
Uzbekistan
Vanuatu
Vatican City State
Venezuela
Vietnam
Wallis and Futuna Islands
Western Sahara
Western Samoa
Yemen
Zambia
Zimbabwe

Phone

* Message

* Verification code
