| Annealed Seamless Copper Tubes for Air-conditioning and Refrigeration | |||||
| •UNS Designation Number: UNS C12200 / Cu-DHP | |||||
| •Chemical Requirement: Cu + Ag (min.): 99.90% ; P: 0.015-0.040% | |||||
| •Standard: ASTM B280 / BS EN 12735 Soft Temper (O60 / R220) | |||||
| •Stocked in 50 and 100 feet coils (15m and 30m) | |||||

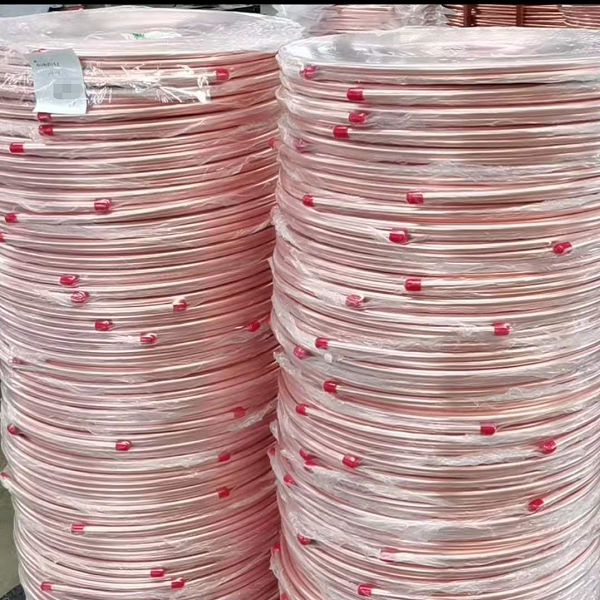

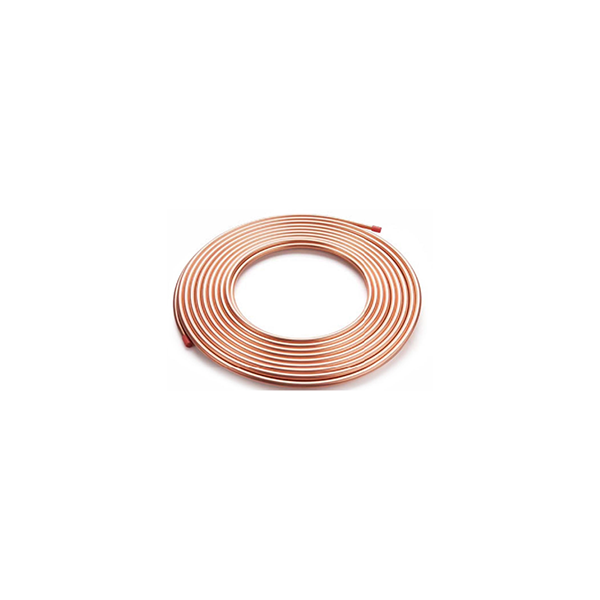

| Soft copper air-conditioning and refrigeration tubing in coils are used in refrigeration industry, pipeline system connection, installation and maintenance. The coils comes cleaned, bright finished, ends sealed, in single, double or multi-layer pancake shape. |
| ASTM B280 | ||||
| Item No. | Standard Size | Outer Diameter | Thickness | Nominal Weight |
| Inch | Inch (mm) | Inch (mm) | Lb/FT (kg/m) | |
| A930011 | 3/16" | 0.187 (4.76) | 0.030 (0.76) | 0.057 (0.085) |
| A930021 | 1/4" | 0.250 (6.35) | 0.030 (0.76) | 0.080 (0.119) |
| A930031 | 5/16" | 0.312 (7.94) | 0.032 (0.81) | 0.109 (0.162) |
| A930041 | 3/8" | 0.375 (9.52) | 0.032 (0.81) | 0.133 (0.198) |
| A930051 | 1/2" | 0.500 (12.7) | 0.032 (0.81) | 0.181 (0.270) |
| A930061 | 5/8" | 0.625 (15.88) | 0.035 (0.89) | 0.251 (0.374) |
| A930071 | 3/4" | 0.750 (19.05) | 0.035 (0.89) | 0.304 (0.453) |
| A930072 | 3/4" | 0.750 (19.05) | 0.042 (1.07) | 0.362 (0.539) |
| BS EN 12735 | ||||
| Item No. | Outer Diameter | Thickness | Nominal Weight | |
| Inch | mm | mm | kg/m | |
| E930011 | 3/16" | 4.76 | 0.80 | 0.089 |
| E930021 | / | 6.00 | 0.80 | 0.116 |
| E930022 | / | 6.00 | 1.00 | 0.140 |
| E930031 | 1/4" | 6.35 | 0.80 | 0.124 |
| E930032 | 1/4" | 6.35 | 1.00 | 0.150 |
| E930041 | 5/16" | 7.94 | 0.80 | 0.160 |
| E930042 | 5/16" | 7.94 | 1.00 | 0.194 |
| E930051 | / | 8.00 | 0.80 | 0.161 |
| E930052 | / | 8.00 | 1.00 | 0.196 |
| E930061 | 3/8" | 9.52 | 0.80 | 0.195 |
| E930062 | 3/8" | 9.52 | 1.00 | 0.239 |
| E930071 | / | 10.00 | 0.80 | 0.206 |
| E930072 | / | 10.00 | 1.00 | 0.252 |
| E930081 | / | 12.00 | 1.00 | 0.308 |
| E930091 | 1/2" | 12.7 | 0.80 | 0.267 |
| E930092 | 1/2" | 12.7 | 1.00 | 0.328 |
| E930111 | / | 15.00 | 1.00 | 0.392 |
| E930121 | 5/8" | 15.88 | 1.00 | 0.417 |
| E930131 | / | 18.00 | 1.00 | 0.476 |
| E930141 | 3/4" | 19.05 | 1.00 | 0.505 |
