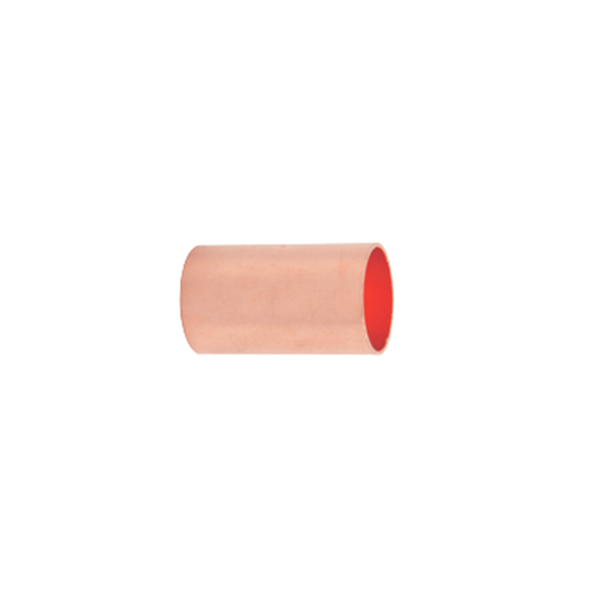

| Product Name | Copper Couplings without Stop |
| Type | C x C |
| Material | C12200/Cu-DHP |
| Standard | ASME B16.22, EN 1254 |
| Size Range | 1/4" ~ 8" (6mm ~ 159mm) |
| Transport Package | Sealing Bag + Carton Case/Wooden Pallet |
| Delivery Time | 7 ~ 10 days |
| Application | For plumbing, water supply, refrigeration, medical gas, etc. |
| Origin | China |
| ASME B16.22 | ||||
| Item No. | Nominal Size (inch) | Actual Size (inch) | Connection Type | Bag Quantity |
| A1011001 | 1/4" | 3/8" | C x C | 100 |
| A1011002 | 3/8" | 1/2" | C x C | 100 |
| A1011003 | 1/2" | 5/8" | C x C | 100 |
| A1011004 | 5/8" | 3/4" | C x C | 25 |
| A1011005 | 3/4" | 7/8" | C x C | 25 |
| A1011006 | 1" | 1-1/8" | C x C | 25 |
| A1011007 | 1-1/4" | 1-3/8" | C x C | 10 |
| A1011008 | 1-1/2" | 1-5/8" | C x C | 10 |
| A1011009 | 2" | 2-1/8" | C x C | 5 |
| A1011010 | 2-1/2" | 2-5/8" | C x C | 5 |
| A1011011 | 3" | 3-1/8" | C x C | 1 |
| A1011012 | 3-1/2" | 3-5/8" | C x C | 1 |
| A1011013 | 4" | 4-1/8" | C x C | 1 |
| A1011014 | 5" | 5-1/8" | C x C | 1 |
| A1011015 | 6" | 6-1/8" | C x C | 1 |
| A1011016 | 8" | 8-1/8" | C x C | 1 |
| EN 1254 | |||
| Item No. | Size (mm) | Connection Type | Bag Quantity |
| E1011001 | 6 | C x C | 100 |
| E1011002 | 8 | C x C | 100 |
| E1011003 | 10 | C x C | 100 |
| E1011004 | 12 | C x C | 50 |
| E1011006 | 15 | C x C | 50 |
| E101008 | 18 | C x C | 20 |
| E1011009 | 22 | C x C | 20 |
| E1011010 | 28 | C x C | 10 |
| E1011011 | 35 | C x C | 5 |
| E1011013 | 42 | C x C | 2 |
| E1011014 | 54 | C x C | 1 |
| E1011016 | 66.7 | C x C | 1 |
| E1011017 | 76.1 | C x C | 1 |
| E1011018 | 88.9 | C x C | 1 |
| E1011019 | 108 | C x C | 1 |
| E1011020 | 133 | C x C | 1 |
| E1011021 | 159 | C x C | 1 |
