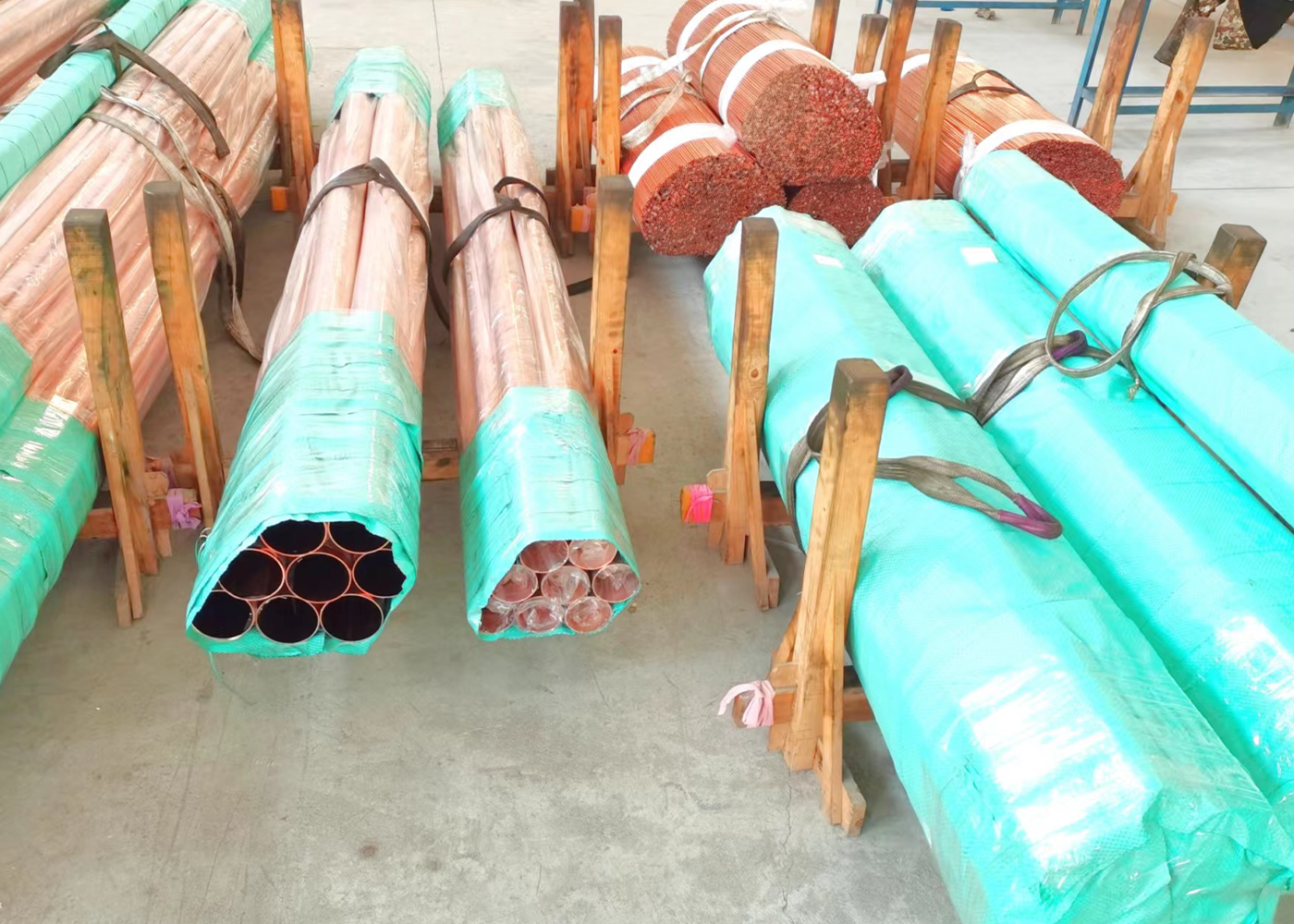

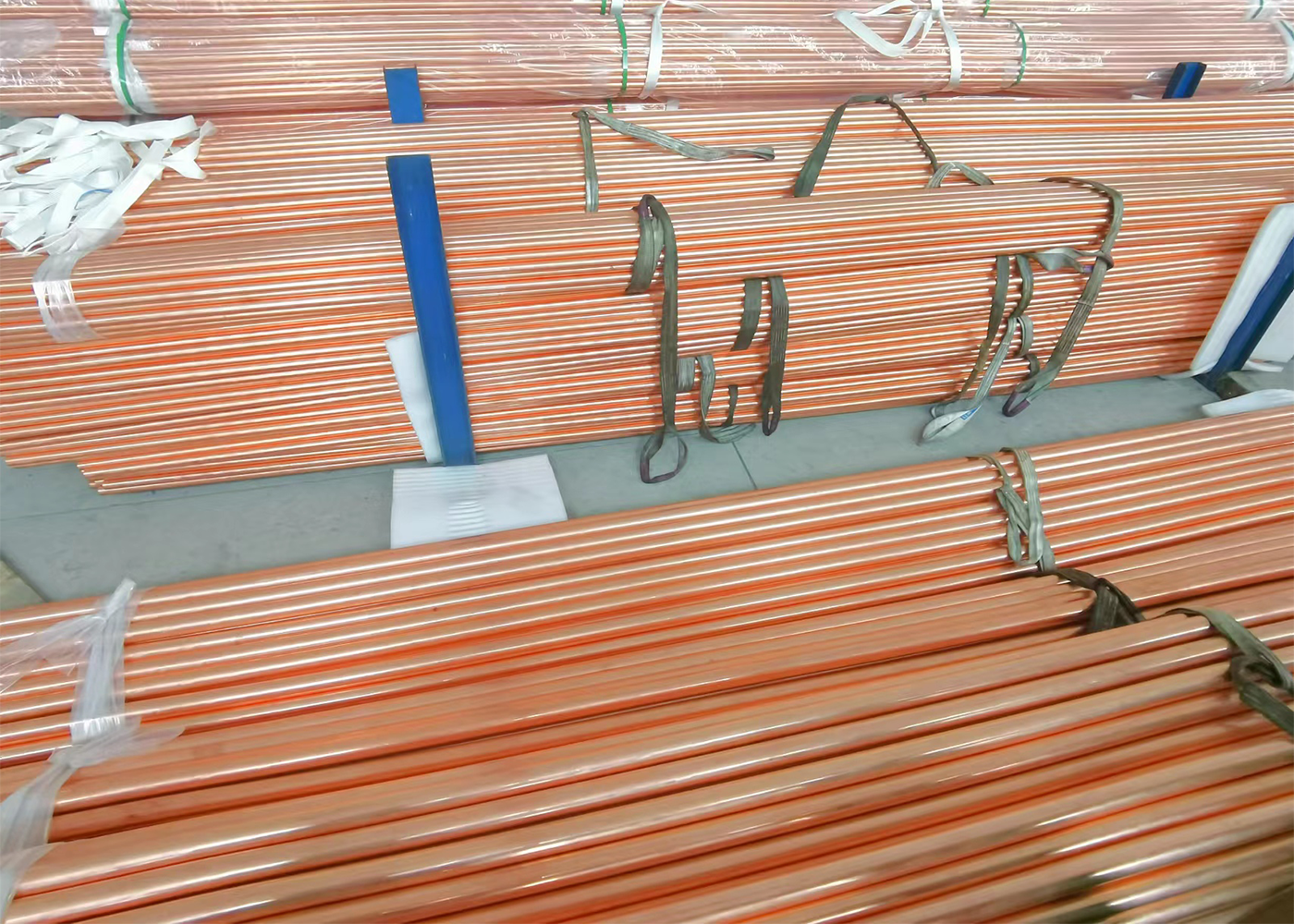

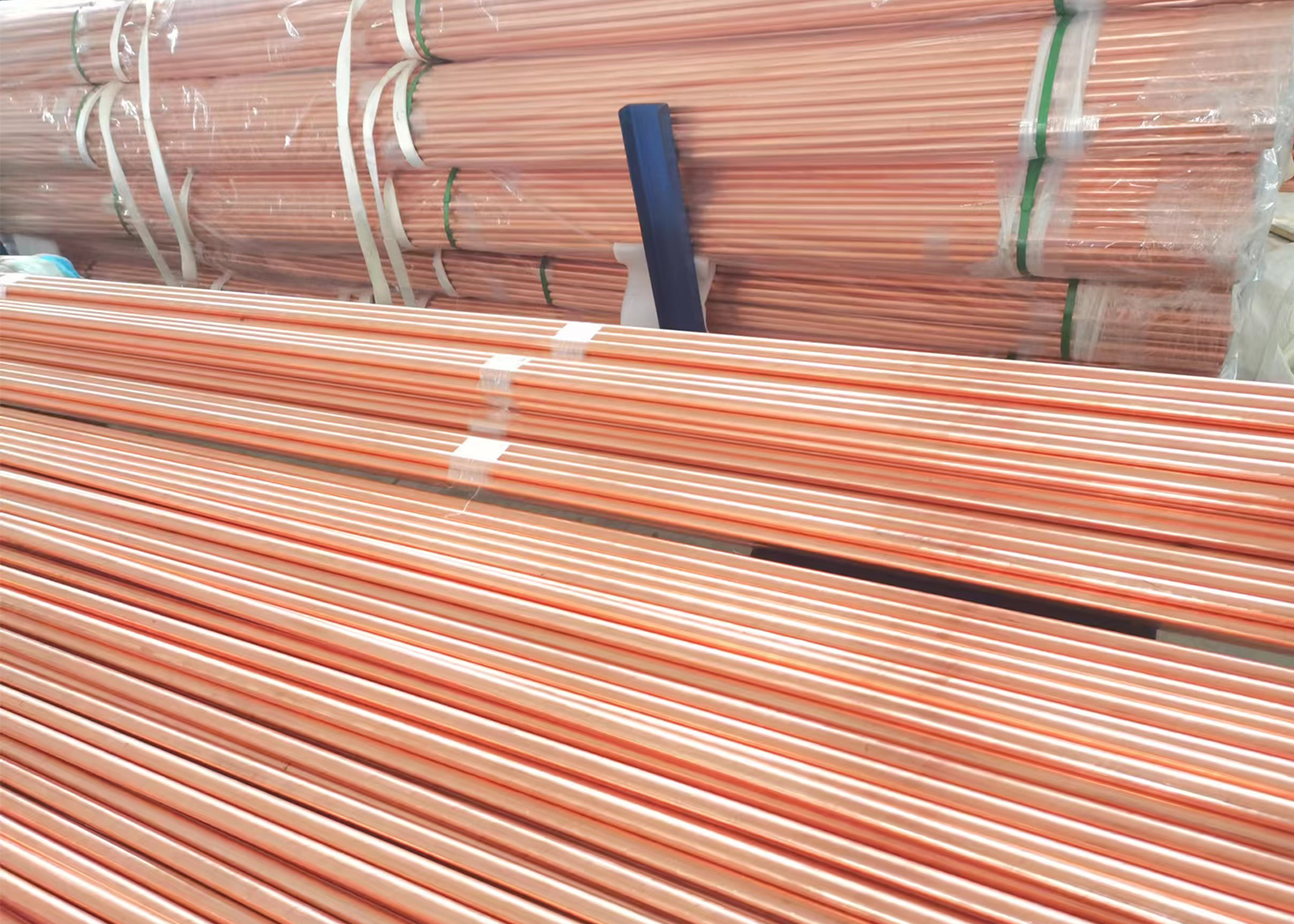

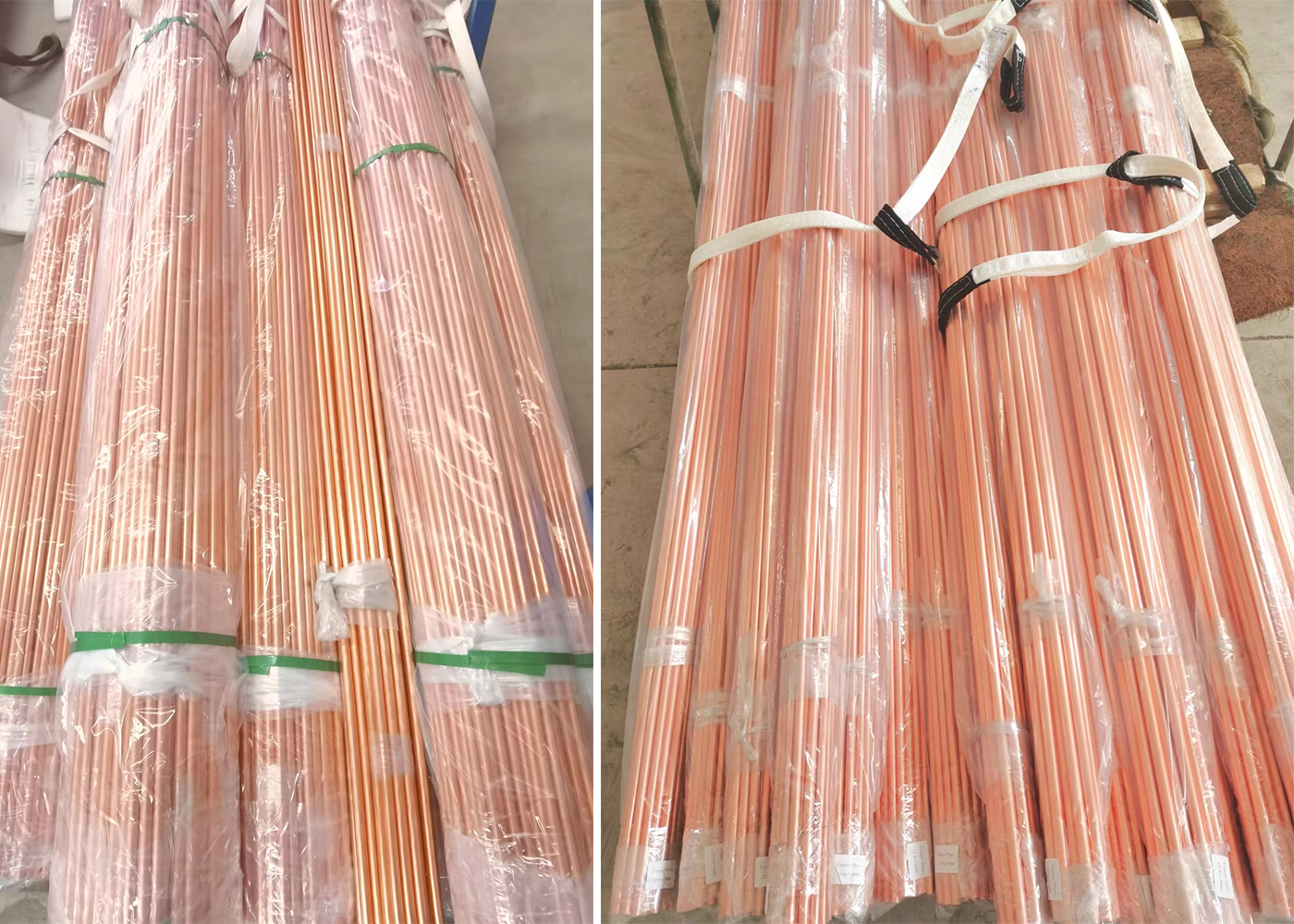

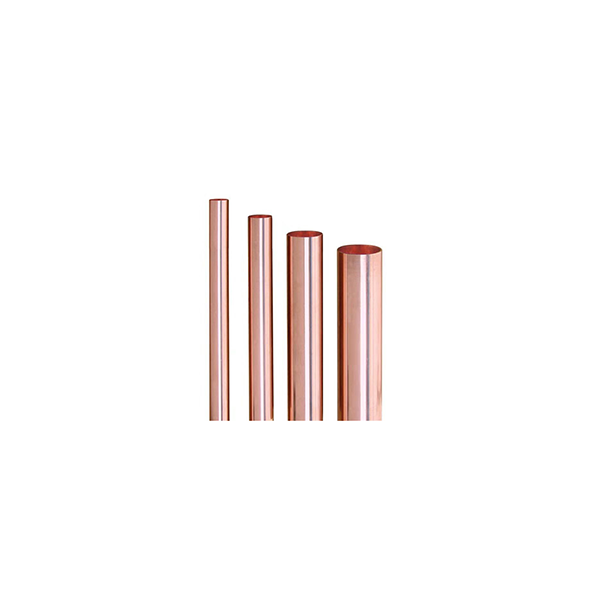

| Copper Water Tubing, Type K, L & M | ||||||
|
American Standard ASTM B88 |
||||||
| •UNS Designation Number: C12200/C11000/Cu-DHP/Cu-ETP/CW024A/CW004A | ||||||
| •Chemical Requirement: Cu + Ag (min.): 99.90% ; P: 0.015-0.040% | ||||||
| Seamless copper water pipes are suitable for general plumbing applications such as groundwater service, drinking water distribution and gas distribution. Three tube types are provided-K, L and M. Each type has a different wall thickness range. For any given diameter, type K has a thicker wall thickness than type L, and type L has a thicker wall thickness than type M. |
| Type K, Straight, Copper Tubing |
| Item No. | Nominal Tube Size In. | Outside Diameter | Wall Thickness | Theoretical Weight | |||
| In. | mm | In. | mm | Ib | kg | ||
| A950010 | 1/4" | 0.375 | 9.53 | 0.035 | 0.89 | 0.15 | 0.21 |
| A950020 | 3/8" | 0.500 | 12.70 | 0.049 | 1.24 | 0.27 | 0.40 |
| A950030 | 1/2" | 0.625 | 15.88 | 0.049 | 1.24 | 0.34 | 0.51 |
| A950040 | 5/8" | 0.750 | 19.05 | 0.049 | 1.24 | 0.42 | 0.62 |
| A950050 | 3/4" | 0.875 | 22.23 | 0.065 | 1.65 | 0.64 | 0.95 |
| A950060 | 1" | 1.125 | 28.58 | 0.065 | 1.65 | 0.84 | 1.24 |
| A950070 | 1-1/4" | 1.375 | 34.93 | 0.065 | 1.65 | 1.04 | 1.54 |
| A950080 | 1-1/2" | 1.625 | 41.28 | 0.072 | 1.83 | 1.36 | 2.02 |
| A950090 | 2" | 2.125 | 53.98 | 0.083 | 2.11 | 2.06 | 3.06 |
| A950100 | 2-1/2" | 2.625 | 66.68 | 0.095 | 2.41 | 2.93 | 4.34 |
| A950110 | 3" | 3.125 | 79.38 | 0.109 | 2.77 | 4.00 | 5.94 |
| A950120 | 3-1/2" | 3.625 | 92.08 | 0.120 | 3.05 | 5.12 | 7.60 |
| A950130 | 4" | 4.125 | 104.78 | 0.134 | 3.40 | 6.51 | 9.66 |
| A950140 | 5" | 5.125 | 130.18 | 0.160 | 4.06 | 9.67 | 14.35 |
| A950150 | 6" | 6.125 | 155.58 | 0.192 | 4.88 | 13.90 | 20.58 |
| A950160 | 8" | 8.125 | 206.38 | 0.271 | 6.88 | 25.90 | 38.45 |
| A950170 | 10" | 10.125 | 257.18 | 0.338 | 8.59 | 40.30 | 59.76 |
| A950180 | 12" | 12.125 | 307.98 | 0.405 | 10.29 | 57.80 | 85.74 |
| Type L, Straight, Copper Tubing |
| Item No. | Nominal Tube Size In. | Outside Diameter | Wall Thickness | Theoretical Weight | |||
| In. | mm | In. | mm | Ib | kg | ||
| A950011 | 1/4" | 0.375 | 9.53 | 0.030 | 0.76 | 0.13 | 0.19 |
| A950021 | 3/8" | 0.500 | 12.70 | 0.035 | 0.89 | 0.20 | 0.29 |
| A950031 | 1/2" | 0.625 | 15.88 | 0.040 | 1.02 | 0.29 | 0.42 |
| A950041 | 5/8" | 0.750 | 19.05 | 0.042 | 1.07 | 0.36 | 0.54 |
| A950051 | 3/4" | 0.875 | 22.23 | 0.045 | 1.14 | 0.46 | 0.67 |
| A950061 | 1" | 1.125 | 28.58 | 0.050 | 1.27 | 0.66 | 0.97 |
| A950071 | 1-1/4" | 1.375 | 34.93 | 0.055 | 1.40 | 0.88 | 1.31 |
| A950081 | 1-1/2" | 1.625 | 41.28 | 0.060 | 1.52 | 1.14 | 1.70 |
| A950091 | 2" | 2.125 | 53.98 | 0.070 | 1.78 | 1.75 | 2.60 |
| A950101 | 2-1/2" | 2.625 | 66.68 | 0.080 | 2.03 | 2.48 | 3.68 |
| A950111 | 3" | 3.125 | 79.38 | 0.090 | 2.29 | 3.33 | 4.93 |
| A950121 | 3-1/2" | 3.625 | 92.08 | 0.100 | 2.54 | 4.29 | 6.37 |
| A950131 | 4" | 4.125 | 104.78 | 0.110 | 2.79 | 5.38 | 7.98 |
| A950141 | 5" | 5.125 | 130.18 | 0.125 | 3.18 | 7.61 | 11.29 |
| A950151 | 6" | 6.125 | 155.58 | 0.140 | 3.56 | 10.20 | 15.14 |
| A950161 | 8" | 8.125 | 206.38 | 0.200 | 5.08 | 19.30 | 28.63 |
| A950171 | 10" | 10.125 | 257.18 | 0.250 | 6.35 | 30.10 | 44.60 |
| A950181 | 12" | 12.125 | 307.98 | 0.280 | 7.11 | 40.40 | 59.91 |
| Type M, Straight, Copper Tubing |
| Item No. | Nominal Tube Size In. | Outside Diameter | Wall Thickness | Theoretical Weight | |||
| In. | mm | In. | mm | Ib | kg | ||
| A950012 | 1/4" | 0.375 | 9.53 | 0.025 | 0.64 | 0.11 | 0.16 |
| A950022 | 3/8" | 0.500 | 12.70 | 0.025 | 0.64 | 0.15 | 0.21 |
| A950032 | 1/2" | 0.625 | 15.88 | 0.028 | 0.71 | 0.20 | 0.30 |
| A950042 | 5/8" | 0.750 | 19.05 | 0.030 | 0.76 | 0.26 | 0.39 |
| A950052 | 3/4" | 0.875 | 22.23 | 0.032 | 0.81 | 0.33 | 0.49 |
| A950062 | 1" | 1.125 | 28.58 | 0.035 | 0.89 | 0.47 | 0.69 |
| A950072 | 1-1/4" | 1.375 | 34.93 | 0.042 | 1.07 | 0.68 | 1.01 |
| A950082 | 1-1/2" | 1.625 | 41.28 | 0.049 | 1.24 | 0.94 | 1.40 |
| A950092 | 2" | 2.125 | 53.98 | 0.058 | 1.47 | 1.46 | 2.17 |
| A950102 | 2-1/2" | 2.625 | 66.68 | 0.065 | 1.65 | 2.03 | 3.01 |
| A950112 | 3" | 3.125 | 79.38 | 0.072 | 1.83 | 2.68 | 3.97 |
| A950122 | 3-1/2" | 3.625 | 92.08 | 0.083 | 2.11 | 3.58 | 5.31 |
| A950132 | 4" | 4.125 | 104.78 | 0.095 | 2.41 | 4.66 | 6.92 |
| A950142 | 5" | 5.125 | 130.18 | 0.109 | 2.77 | 6.66 | 9.88 |
| A950152 | 6" | 6.125 | 155.58 | 0.122 | 3.10 | 8.92 | 13.23 |
| A950162 | 8" | 8.125 | 206.38 | 0.170 | 4.32 | 16.50 | 24.43 |
| A950172 | 10" | 10.125 | 257.18 | 0.212 | 5.38 | 25.60 | 37.96 |
| A950182 | 12" | 12.125 | 307.98 | 0.254 | 6.45 | 36.70 | 54.47 |
| Copper Water Tubing | ||||||
|
European Standard EN 1057 |
||||||
| •UNS Designation Number: Cu-DHP | ||||||
| •Chemical Requirement: Cu + Ag (min.): 99.90% ; P: 0.015-0.040% |
| Item No. | Outer Diameter | Thickness | Nominal Weight | ||
| mm | mm | kg/m | |||
| E950010 | 6 | 0.6 | 0.091 | ||
| E950011 | 6 | 0.8 | 0.116 | ||
| E950012 | 6 | 1.0 | 0.140 | ||
| E950020 | 8 | 0.6 | 0.124 | ||
| E950021 | 8 | 0.8 | 0.161 | ||
| E950022 | 8 | 1.0 | 0.196 | ||
| E950030 | 10 | 0.6 | 0.158 | ||
| E950031 | 10 | 0.7 | 0.182 | ||
| E950032 | 10 | 0.8 | 0.206 | ||
| E950033 | 10 | 1.0 | 0.252 | ||
| E950040 | 12 | 0.6 | 0.192 | ||
| E950041 | 12 | 0.7 | 0.221 | ||
| E950042 | 12 | 0.8 | 0.251 | ||
| E950043 | 12 | 1.0 | 0.308 | ||
| E950050 | 14 | 0.8 | 0.296 | ||
| E950051 | 14 | 1.0 | 0.364 | ||
| E950060 | 15 | 0.7 | 0.280 | ||
| E950061 | 15 | 0.8 | 0.318 | ||
| E950062 | 15 | 1.0 | 0.392 | ||
| E950070 | 16 | 1.0 | 0.420 | ||
| E950080 | 18 | 0.8 | 0.385 | ||
| E950081 | 18 | 1.0 | 0.476 | ||
| E950090 | 22 | 0.9 | 0.532 | ||
| E950091 | 22 | 1.0 | 0.588 | ||
| E950092 | 22 | 1.1 | 0.644 | ||
| E950093 | 22 | 1.2 | 0.699 | ||
| E950094 | 22 | 1.5 | 0.861 | ||
| E950100 | 28 | 0.9 | 0.683 | ||
| E950101 | 28 | 1.0 | 0.756 | ||
| E950102 | 28 | 1.2 | 0.900 | ||
| E950103 | 28 | 1.5 | 1.113 | ||
| E950110 | 35 | 1.0 | 0.952 | ||
| E950111 | 35 | 1.2 | 1.136 | ||
| E950112 | 35 | 1.5 | 1.407 | ||
| E950120 | 40 | 1.0 | 1.092 | ||
| E950130 | 42 | 1.0 | 1.148 | ||
| E950131 | 42 | 1.2 | 1.371 | ||
| E950132 | 42 | 1.5 | 1.701 | ||
| E950140 | 54 | 1.0 | 1.484 | ||
| E950141 | 54 | 1.2 | 1.774 | ||
| E950142 | 54 | 1.5 | 2.205 | ||
| E950143 | 54 | 2.0 | 2.912 | ||
| E950150 | 64 | 2.0 | 3.472 | ||
| E950160 | 66.7 | 1.2 | 2.201 | ||
| E950161 | 66.7 | 2.0 | 3.623 | ||
| E950170 | 76.1 | 1.5 | 3.133 | ||
| E950171 | 76.1 | 2.0 | 4.150 | ||
| E950180 | 88.9 | 2.0 | 4.866 | ||
| E950190 | 108 | 1.5 | 4.473 | ||
| E950191 | 108 | 2.5 | 7.385 | ||
| E950200 | 133 | 1.5 | 5.523 | ||
| E950201 | 133 | 3.0 | 10.920 | ||
| E950210 | 159 | 2.0 | 8.792 | ||
| E950211 | 159 | 3.0 | 13.104 | ||
| E950220 | 219 | 3.0 | 18.144 | ||
| E950230 | 267 | 3.0 | 22.176 | ||
