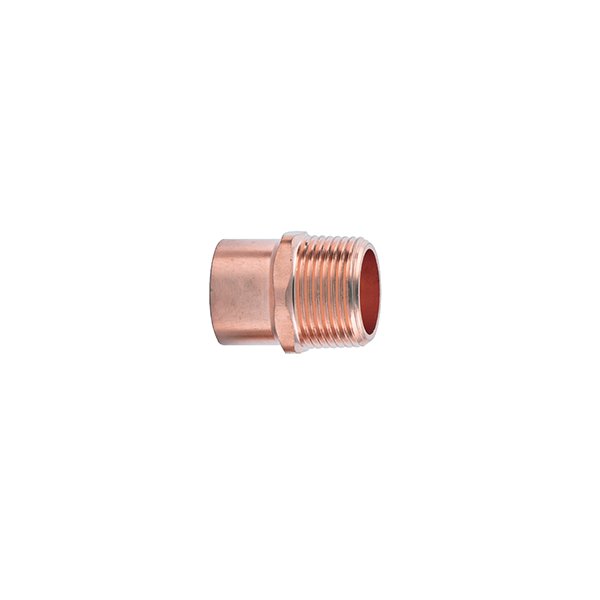

| Product Name | Copper Male Adapters |
| Type | C x MPT |
| Material | C12200/Cu-DHP |
| Standard | ASME B16.22, EN 1254 |
| Size Range | 1/4" x 1/4"MPT ~ 2-1/2" x 2"MNPT (12mm x 1/2"MPT ~ 108mm x 4"MPT) |
| Transport Package | Sealing Bag + Carton Case/Wooden Pallet |
| Delivery Time | 7 ~ 10 days |
| Application | For plumbing, water supply, refrigeration, medical gas, etc. |
| Origin | China |
| ASME B16.22 | ||||
| Item No. | Nominal Size (inch) | Actual Size (inch) | Connection Type | Bag Quantity |
| A119001 | 1/4" | 3/8" x 1/4" | C x MPT | 50 |
| A119002 | 3/8" | 1/2" x 3/8" | C x MPT | 50 |
| A119003 | 1/2" | 5/8" x 1/2" | C x MPT | 50 |
| A119004 | 3/4" | 7/8" x 3/4" | C x MPT | 25 |
| A119005 | 1" | 1-1/8" x 1" | C x MPT | 25 |
| A119006 | 1-1/4" | 1-3/8" x 1-1/4" | C x MPT | 25 |
| A119007 | 1-1/2" | 1-5/8" x 1-1/2" | C x MPT | 10 |
| A119008 | 2" | 2-1/8" x 2" | C x MPT | 10 |
| A119009 | 2-1/2" | 2-5/8" x 2-1/2" | C x MPT | 1 |
| A119010 | 3" | 3-1/8" x 3" | C x MPT | 1 |
| A119011 | 4" | 4-1/8" x 4" | C x MPT | 1 |
| A119012 | 1/4" x 3/8" | 3/8" x 3/8" | C x MPT | 50 |
| A119013 | 1/4" x 1/2" | 3/8" x 1/2" | C x MPT | 50 |
| A119021 | 3/8" x 1/4" | 1/2" x 1/4" | C x MPT | 50 |
| A119022 | 3/8" x 1/2" | 1/2" x 1/2" | C x MPT | 50 |
| A119031 | 1/2" x 1/4" | 5/8" x 1/4" | C x MPT | 50 |
| A119032 | 1/2" x 3/8" | 5/8" x 3/8" | C x MPT | 50 |
| A119033 | 1/2" x 3/4" | 5/8" x 3/4" | C x MPT | 50 |
| A119034 | 1/2" x 1" | 5/8" x 1" | C x MPT | 50 |
| A119041 | 5/8" x 1/2" | 3/4" x 1/2" | C x MPT | 25 |
| A119042 | 5/8" x 3/4" | 3/4" x 3/4" | C x MPT | 25 |
| A119051 | 3/4" x 1/2" | 7/8" x 1/2" | C x MPT | 25 |
| A119052 | 3/4" x 1" | 7/8" x 1" | C x MPT | 25 |
| A119061 | 1" x 1/2" | 1-1/8 x 1/2" | C x MPT | 25 |
| A119062 | 1" x 3/4" | 1-1/8" x 3/4" | C x MPT | 25 |
| A119063 | 1" x 1-1/4" | 1-1/8" x 1-1/4" | C x MPT | 25 |
| A119064 | 1" x 1-1/2" | 1-1/8" x 1-1/2" | C x MPT | 25 |
| A119071 | 1-1/4" x 3/4" | 1-3/8" x 3/4" | C x MPT | 25 |
| A119072 | 1-1/4" x 1" | 1-3/8" x 1" | C x MPT | 25 |
| A119073 | 1-1/4" x 1-1/2" | 1-3/8" x 1-1/2" | C x MPT | 25 |
| A119081 | 1-1/2" x 1" | 1-5/8" x 1" | C x MPT | 10 |
| A119082 | 1-1/2" x 1-1/4" | 1-5/8" x 1-1/4" | C x MPT | 10 |
| A119083 | 1-1/2" x 2" | 1-5/8" x 2" | C x MPT | 10 |
| A119091 | 2" x 1-1/4" | 2-1/8" x 1-1/4" | C x MPT | 10 |
| A119092 | 2" x 1-1/2" | 2-1/8" x 1-1/2" | C x MPT | 10 |
| A119111 | 2-1/2" x 1-1/2" | 2-5/8" x 1-1/2" | C x MPT | 1 |
| A119112 | 2-1/2" x 2" | 2-5/8" x 2" | C x MPT | 1 |
| EN 1254 | |||
| Item No. | Size (mm) | Connection Type | Bag Quantity |
| E119010 | 12 x 1/2"MPT | C x MPT | 25 |
| E119011 | 12 x 3/8"MPT | C x MPT | 25 |
| E119012 | 12 x 1/4"MPT | C x MPT | 25 |
| E119015 | 15 x 1/2"MPT | C x MPT | 25 |
| E119016 | 15 x 3/8"MPT | C x MPT | 25 |
| E119017 | 15 x 1/4"MPT | C x MPT | 25 |
| E119023 | 22 x 3/4"MPT | C x MPT | 20 |
| E119024 | 22 x 1/2"MPT | C x MPT | 20 |
| E119026 | 28 x 1"MPT | C x MPT | 10 |
| E119027 | 28 x 3/4"MPT | C x MPT | 10 |
| E119028 | 28 x 1/2"MPT | C x MPT | 10 |
| E119030 | 35 x 1-1/4"MPT | C x MPT | 5 |
| E119031 | 35 x 1"MPT | C x MPT | 5 |
| E119035 | 42 x 1-1/2"MPT | C x MPT | 2 |
| E119040 | 54 x 2"MPT | C x MPT | 2 |
| E119045 | 67 x 2-1/2"MPT | C x MPT | 1 |
| E119050 | 76 x 3"MPT | C x MPT | 1 |
| E119060 | 108 x 4"MPT | C x MPT | 1 |
